1. Introduction to the Solution:

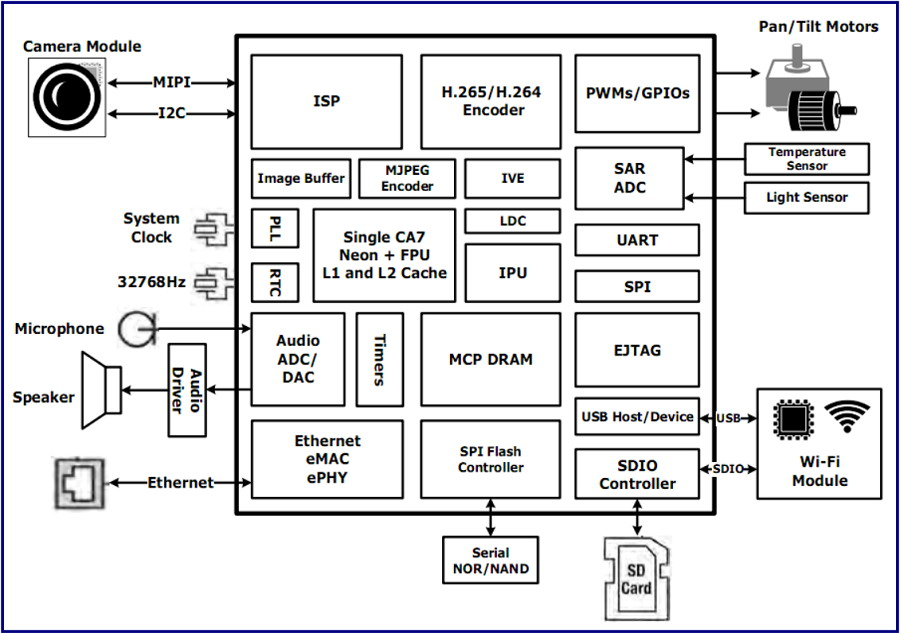

Sigmastar SSC375DE is a high-integration, cost-effective IP camera SoC main control chip with IPU computing power. It adopts a Cortex-A7 single-core processor operating at 1.2GHz, built-in 1Gb DDR3L memory, and a high-performance ISP supporting two MIPI camera inputs. It can support up to 4-megapixel (2560x1440) cameras and features LDC ultra-wide-angle support. The chip has an integrated high-performance H.264/H.265 encoder supporting 2160p@30fps video encoding, and it also supports IVE advanced intelligent video encoding and lens distortion correction (LDC) video encoding. The embedded IPU provides 0.5 TOPs computing power and supports various detection algorithms, including human, vehicle, pet, and package detection. Notably, the SSC375DE is pin-compatible with the SSC377 series, allowing direct cost-down replacement.
2. Main Parameters:
- Processor: Cortex-A7 single-core @1.2GHz
- DRAM: 1Gb built-in DDR3L
- Maximum Camera Resolution: 4M (2560x1440)
- ISP Features: Supports Noise Reduction (NR), 3DNR, Lens Shading Correction (LSC), Lens Distortion Correction (LDC), Auto White Balance (AWB), Auto Exposure (AE), Auto Focus (AF), Color Filter Array (CFA), Wide Dynamic Range/High Dynamic Range (WDR/HDR)
- Video Input Interface: 2-channel MIPI
- Video Encoding: H.265/H.264, up to 2560x1440@30fps + D1@30fps
- Security: Supports DES/3DES/AES (128/192/256-bit), RSA, SHA-1/SHA-256
- USB Interface: USB 2.0 Host/Device
- Audio: 1 ADC, 1 DAC
- Storage Interfaces: SPI Nor/Nand, SDIO 2.0, SD 2.0
- Peripherals: GPIOs, 4 UARTs, 11 PWM channels, 2 SPI, 3 I2C, Timer, RTC, etc.
- Connectivity: 10/100Mbps PHY, USB 2.0 Host for Wi-Fi modules, 2x SDIO 2.0 Host for Wi-Fi modules
- Operating Temperature: -20°C to 70°C
- Package: QFN88, 9 x 9mm
3. Application and Solution Information:
This solution primarily targets applications such as IP cameras, stereoscopic cameras, smart door locks, doorbells, peepholes, cameras, animal conservation cameras, etc. The solution package includes a complete hardware platform and software SDK, with FAE support to facilitate rapid mass production. Please contact our customer service team if you are interested.
