I. Solution Description:
SSD201 is a highly integrated intelligent high-definition display solution. The main chip is ARM Cortex A7, dual-core, with a frequency of 1.2GHz. SSD201 has a built-in DDR2 of 512Mb. It supports H.264/H.265 decoding, a 2D graphics engine. It supports MIPI and TTL interface display screens, and the resolution can reach up to 1920x1080@60fps. It supports SPI-Nor/Nand Flash, two Ethernet ports. It has a built-in RTC, and supports Microphone input and Lineout. It is packaged in QFN128 with a size of 12.3x12.3mm, and the operating temperature of the chip is -20~85℃.

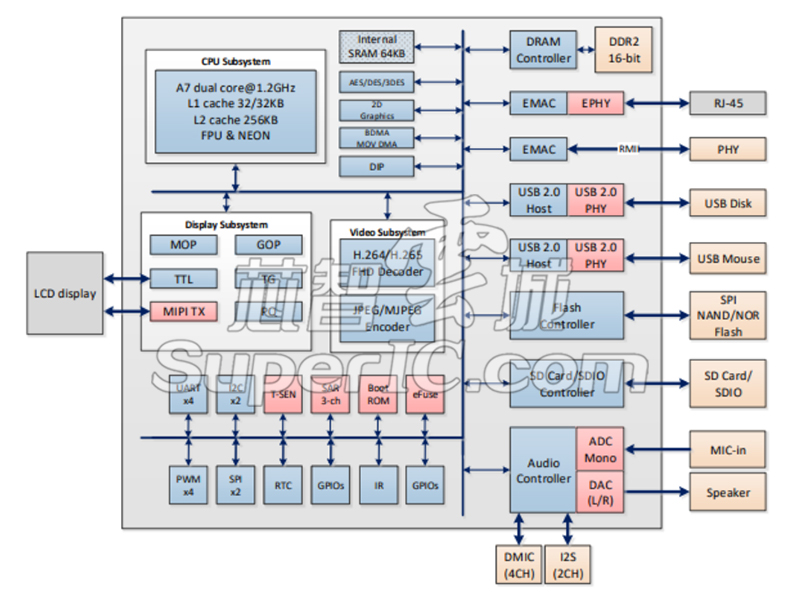

II. Solution Block Diagram:
III. Functional Features:
- Supports H.264/AVC decoding, with a maximum support of 1080P@60fps.
- Supports H.265/HEVC decoding, with a maximum support of 1080P@60fps.
- Supports JPEG encoding, with a maximum support of 1080P@15fps.
- Supports TTL screens, with a maximum resolution of 720P@60fps; supports MIPI screens, with a maximum resolution of 1080P@60fps.
- Supports a 2D graphics acceleration engine.
- Supports 2 stereo DMIC inputs.
- Supports Line out.
- Supports 1/2/4-bit SPI-Nor/Nand Flash.
- SDIO 2.0 interface.
- 2 USB 2.0 host ports, which can be used to connect a mouse, WiFi, hard disk, and AI chip.
- Built-in DDR2, 512Mb, 16-bit.
- Supports two Ethernet ports.
- Built-in RTC.
- 4 UARTs (3 generic UARTs and 1 fast UART).
- Packaged：QFN128
- sizes：12.3x12.3mm.
IV. Application Areas:
Building visual intercom doorbells, smart homes, cloud printers, in-vehicle displays, white goods, VOIP phones, intelligent gateways.
V. Technical Support:
IC365 Mall can provide the circuit diagrams, PCB reference board diagrams, source codes corresponding to the project, as well as the technical support for software and hardware development corresponding to the project.

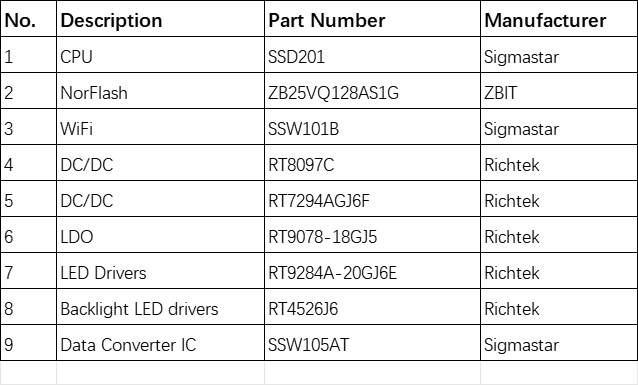

VI. Main Component Configuration Table of the Solution:
