I. Solution Introduction

The SSC388G is a highly integrated smart video SoC chip with edge computing power. It features a built - in quad - core Coretex - A7 processor and can support a maximum of 16Gb of memory. The chip is equipped with a rich set of interfaces, offers flexible configuration, supports AES/DES/3DES hardware encryption functions, and has a high - level security grade. It combines powerful functionality with high cost - effectiveness.

The solution based on the SSC388G supports 8M (3840 * 2160) pixel cameras and comes with AI - ISP capabilities. It has achieved a qualitative leap in night - vision performance, imaging in high - contrast lighting scenarios, and imaging in high - speed motion scenarios. It can be applied to video capture and security monitoring in various low - light environments. The chip can support up to 3 camera channels, and is compatible with schemes of gun - dome camera linkage and multi - camera stitching. It also features an LDC (Lens Distortion Correction) function, which can be used in ultra - wide - angle fisheye cameras.

It has a built - in high - performance H.264/H.265 encoder, supporting 2160p@45fps video encoding and the advanced IVE intelligent video encoding. With a built - in 1TOPs IPU computing power, it efficiently supports Transformer - based large models at the edge side and various image detection algorithms, and can be adapted to scenario detection including human figures, vehicle shapes, pets, and parcels.

II. Key Parameters

Processor: Quad - core Cortex - A7 @1.2GHz

DRAM Memory: Up to 16Gb, 32 - bit, supports DDR3/3L/4/4L, LPDDR4/4x

Maximum Camera Resolution: 8 million pixels (3840 * 2160)

ISP Functions: Supports AI - ISP, 3DNR, LSC, LDC, AWB, AE, AF, CFA, WDR/HDR, etc.

Video Input Interfaces: MIPI, BT.601/656/1120, 3 channels

Video Encoding: H.265/H.264, 4K@45fps

Video Decoding: H.264, 2048 x 1536, supports rotation

Video Output: TTL, RGB, MIPI, BT.656/1120

Security: Supports DES/3DES/AES128/196/256 - bit, RSA2048/4096 - bit, SHA - I/SHA - 256, OTP

USB Interface: USB2.0 Host/Device

Audio: I2S, ADC, DAC, 2 DMICs

Display Interface: TTL/Parallel - RGB, 16 - bit (1024 x 600@60fps), BT.656 8 - bit

Storage Interfaces: SPI Nor/Nand, SDIO3.0, SD3.0, eMMC5.0

Peripherals: 4 UARTs, GPIOs, 7 I2Cs, 12 PWMs, 2 SPIs, 14 Timers, RTC, IrDA, etc.

Network: 10/100/1000Mbps Ethernet MAC, 10/100Mbps PHY

Package: FC - CSP414, 14 x 14mm

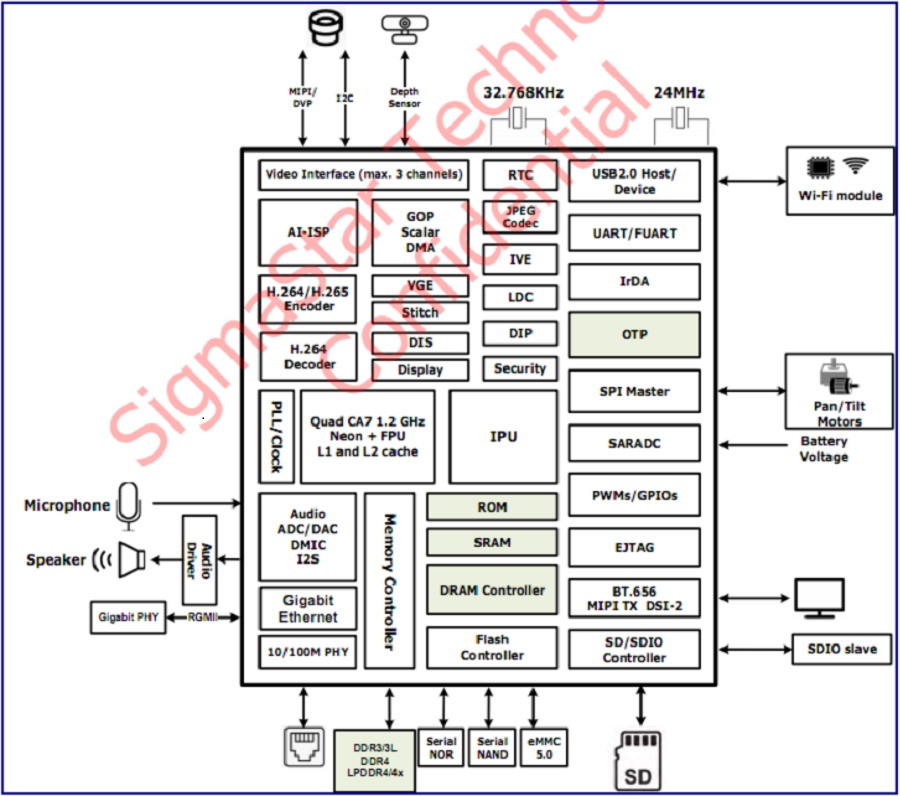

Figure 1: Chip Schematic Diagram

III. Application Scenarios and Solution Materials

The main application scenarios of this solution include low - light full - color cameras, gun - dome camera linkage cameras, multi - camera stitching cameras, fisheye cameras, and video conferencing systems. The solution materials include a complete hardware platform and software SDK. FAE support is available to enable rapid mass production. Please contact the mall customer service staff if needed.
